DC-DC
DC-DC隔离板载模块电源
时间：2022-03-15 14:40    作者：nupower    浏览：次
<
产品图片 系列 输入电压
（VDC）		 输出电压
(VDC)		 输出功
(W)		 尺寸（mm） 工作
温度		 产品简介 封装
Package
DA01S 5,12,24
(±10%)		 5,9,12,15 1 12.7x8x10.2 -40℃
to
+75℃		 效率79%，隔离电压3000VDC DIP
PA01S 3.3,
5,12,24
(±10%)		 3.3,
5, 9,12,15		 1 11.5x7.1x10.2 - 40°C
to
+85°C		 效率80%，隔离电压1000VDC SIP
PB01S 5,12,15,24
(±10%)		 3.3,5,9,12,15 1 19.5x7.1x10.2 -40°C
to
+85°C		 效率81%，隔离电压1000VDC SIP
PB01D ±5,±9,±12,±15 -40°C
to
+85°C
PD01S 5,12,24
(±10%)		 3.3,5,9,12,15 1 19.5x7.1x10.2 -40°C
to
+85°C		 效率81%，隔离电压3000VDC SIP
PD01D ±5,±9,±12,±15 -40°C
to
+85°C
PE01S 5,12,24
(±10%)		 5,9,12,15 1 19.5x7.1x10.2 -40°C
to
+85°C		 效率88.5%，隔离电压1000VDC SIP
PE01D ±5,±9,±12,±15 -40°C
to
+85°C
PF01S 5,12,24
(±10%)		 5,9,12,15 1 19.5x7.1x10.2 -40°C
to
+85°C		 效率88%，隔离电压3000VDC SIP
PI01S 5,12
(±10%)		 5,12,15 1 22x7.5x12.5 - 25°C
to
+85°C		 效率75%，隔离电压3000VACrms SIP
PI01D ±5,±12,±15 - 25°C
to
+85°C
PL01S 4.5-9,
9-18,		 5,12,15 1 17x7.62x11 -40°C
to
+85°C		 效率80%，隔离电压1500VDC SIP
PL01D 18-36,
36-75		 ±12,±15 -40°C
to
+85°C
SA01D 5,12,24
(±10%)		 ±5,,±9,±12,±15 1 15.24x8.3x7.8 -40°C
to
+85°C		 效率80%，隔离电压1000VDC SMD
SA01S 5,12,24
(±10%)		 3.3,5,9,12,15 1 12.7x8.3x7.8 -40°C
to
+85°C		 效率82%，隔离电压1000VDC SMD
SB01S 5,12,24
(±10%)		 5,12,15, 1 15.3x8x6.75 -40°C
to
+85°C		 效率81%，隔离电压3000VDC SMD
SB01D ±5,±12,±15 -40°C
to
+85°C
SH01S 5,12,15,24
(±10%)		 3.3,5,9,12,15 1 16.24x8x6.7 -40°C
to
+85°C		 效率80%，隔离电压1500VDC SMD
SH01D ±5,±12,±15 -40°C
to
+85°C
SK01S 5,12,24,48
(±10%)		 5,12,15,±12,±15 1 18.9x13.7x8.45 -40°C
to
+85°C		 效率82%，隔离电压1500VDC SMD
SK01D -40°C
to
+85°C
DB02S 4.5-9,
9-18,		 3.3,5,12,15 2 23.8x13.7x8 –40°C
to
+80°C		 效率81%，隔离电压1500VDC DIP
DB02D 18-36,
36-75		 ±5,±12,±15 –40°C
to
+80°C
DC02S 5,12,24
(±10%)		 5,12,15 2 31.8x20.3x10.2 –25°C
to
+75°C		 效率64%，隔离电压6000VDC DIP
DC02D ±5,±12,±15 –25°C
to
+75°C
DK02S 5,12,24
(±10%)		 5,12,15 2 23.8x13.4x8.6 –25°C
to
+80°C		 效率75%，隔离电压4000VAC DIP
DK02D ±12,±15 –25°C
to
+80°C
PC02S 5,12,24
(±10%)		 3.3,5,12,15 2 19.5x7.6x10.2 -40°C
to
+85°C		 效率83%，隔离电压1000VDC SIP
PC02D ±5,±12,±15 -40°C
to
+85°C
PG02S 4.5-9,
9-18,		 3.3, 5,12 2 21.8x9.3x11.2 -40°C
to
+85°C		 效率81%，隔离电压1000VDC SIP
18-36,
36-75		 -40°C
to
+85°C
PH02S 9-36,
18-75		 3.3,5,12,15 2 25.95x9.25x12.45 -40°C
to
+85°C		 效率80%，隔离电压1500VDC SIP
PH02D ±5,±12,±15 -40°C
to
+85°C
SC02S 5,12,24
(±10%)		 5,12 2 15.3x9.3x8.65 -40°C
to
+85°C		 效率82%，隔离电压1000VDC SMD
SC02D ±5,±12,±15 -40°C
to
+85°C
SD02S 4.5-9,
9-18,		 3.3,5,12,15 2 24x13.7x8 -40°C
to
+85°C		 效率81%，隔离电压1500VDC SMD
SD02D 18-36,
36-75		 ±5,±12,±15 -40°C
to
+85°C
SG02S 5,12,24
(±10%)		 5,12,15 2 24x13.7x9  -25°C
to
+80°C		 效率75%，隔离电压4000VACrms SMD
SG02D ±12,±15  -25°C
to
+80°C
DD03S 4.5-9,
9-18,		 5,12,15 3 31.8x20.3x10.2 –40°C
to
+85°C		 效率81%，隔离电压1500VDC DIP
DD03D 18-36,
36-75		 ±12,±15 –40°C
to
+85°C
DL03S 9-36,
18-75		 3.3,5,12,15 3 31.8x20.3x10.2 –40°C
to
+85°C		 效率84%，隔离电压1500VDC，符合EN55022 Class A DIP
DL03D ±12,±15 –40°C
to
+85°C
DM03S 4.5-9,
9-18,		 5,12,24 3 31.8x20.3x10.5 –40°C
to
+85°C		 效率84%，隔离电压4000VACrms，符合EN55022 Class A DIP
DM03D 18-36,
36-75		 ±12,±15 –40°C
to
+85°C
PJ03S 4.5-18,
9-36,
18-75		 3.3,5,12,15 3 21.8x9.3x11.2 –40°C
to
+85°C		 效率81%，隔离电压1600VDC SIP
PJ03D ±5,±12,±15 –40°C
to
+85°C
SE03S 9-18,
18-36,
36-75		 3.3,5,12,15 3 32.3x14.8x10.2 –40°C
to
+71°C		 效率83%，隔离电压1500VDC SMD
SE03D ±5,±12,±15 –40°C
to
+71°C
DN03S 4.5-9,
9-18,		 3.3,5,12,24 2~3 31.8x20.3x10.2 –40°C
to
+85°C		 效率85%，隔离电压1500VDC for DN03S/DXXXXA ,3000VDC for DN03S/DXXXXH DIP
DN03D 18-36,
36-75		 ±5±12,±15 –40°C
to
+85°C
DF04S 9-36,
18-75		 3.3,5,12,15 4 31.8x20.3x10.2 –40°C
to
+71°C		 效率85%，隔离电压1500VDC DIP
DF04D ±5,±12,±15 –40°C
to
+71°C
DH06S 9-18,
18-36,
36-75		 3.3,5,12,15,24 6 31.8x20.3x10.2 –40°C
to
+85°C		 效率84%，隔离电压1500VDC/3000VDC(可选) DIP
DH06D ±5,±12,±15 –40°C
to
+85°C
DJ06S 9-36,
18-75		 3.3,5,12,15,24 6 31.8x20.3x10.2 –40°C
to
+85°C		 效率84%，隔离电压1500VDC/3000VDC(可选) DIP
DJ06D ±5,±12,±15 –40°C
to
+85°C
DU06S 9-18,
18-36,
36-75		 5,12 6 31.8x20.3x12 –40°C
to
+75°C		 效率80%，隔离电压4000VAC DIP
DU06D ±12,±15 –40°C
to
+75°C

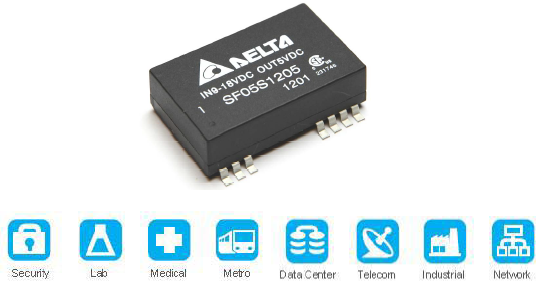

SF05S 9-18,
18-36,
36-75		 3.3,5,12,15 5 33.4x20.8x10.2 –40°C
to
+71°C		 效率85%，隔离电压1500VDC SMD
SF05D ±5,±12,±15 –40°C
to
+71°C
DT10S 9-18,
18-36,
36-75		 5,5.1,12 10 50.8x25.4x12 –40°C
to
+75°C		 效率82%，隔离电压4200VAC DIP
DT10D ±12,±15 –40°C
to
+75°C
S36SE
3R305		 18~75 3.3 16.5 27.9x24.4x8.7 –40°C
to
+85°C		 效率87%，隔离电压1500VDC 1"x1"
S36SE
05003		 18~75 5 15 27.9x24.4x8.7 –40°C
to
+85°C		 1"x1"
S36SE
12001		 18~75 12 15.5 27.9x24.4x8.7 –40°C
to
+85°C		 1"x1"
V36SE
3R315		 18~75 3.3 50 33x22.8x9.3 –40°C
to
+118°C		 效率90.5% @ 3.3V/15A, 48Vin   88.5% @ 3.3V/12A, 24Vin     隔离电压2250VDC 1/16 brick
V36SE
05010		 18~75 5 50 33x22.8x9.3 –40°C
to
+119°C		 效率91%@5V/10A,48Vin 90%@5V/8A,24Vin              隔离电压2250VDC 1/16 brick

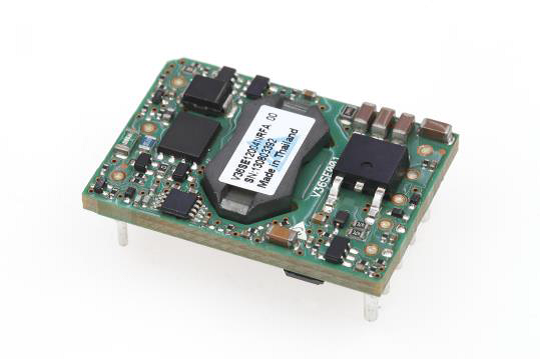

V36SE
12004		 18~75 12 50 33x22.8x8.7 –40°C
to
+122°C		 效率88% @ 12V/4.2A, 48Vin        86% @ 12V/3.5A, 24Vin       隔离电压2250VDC 1/16 brick
　 　 　 　 　 　 　 　 　 　
V48SH
1R035		 36~75 1 35 33x22.8x9.5 –40°C
to
+114°C		 效率85% @ 1.0V/35A,隔离电压1500VDC 1/16 brick
V48SH
1R050		 36~75 1 50 33x22.8x9.5 –40°C
to
+85°C		 效率84% @ 1.0V/50A,隔离电压1500VDC 1/16 brick
E48SH
1R050		 36~75 1 50 58.4x22.8x9.5 –40°C
to
+125°C		 效率84.5% @1.0V/50A,隔离电压2250VDC 1/8 brick
V48SR
1R225		 36~75 1.2 30 33x22.8x9.5 –40°C
to
+127°C		 效率84.0% @ 1.2V/25A,隔离电压2250VDC 1/16 brick
V48SH
1R235		 36~75 1.2 42 33x22.8x9.5 –40°C
to
+114°C		 效率87% @ 1.2V/35A,隔离电压1500VDC 1/16 brick
V48SR
1R525		 36~75 1.5 38 33x22.8x9.5 –40°C
to
+127°C		 效率85.0% @ 1.5V/25A,隔离电压2250VDC 1/16 brick
V48SR
1R825		 36~75 1.8 45 33x22.8x9.5 –40°C
to
+127°C		 效率87.0% @ 1.8V/25A,隔离电压2250VDC 1/16 brick
V48SR
2R520		 36~75 2.5 50 33x22.8x9.5 –40°C
to
+127°C		 效率89.0% @ 2.5V/20A,隔离电压2250VDC 1/16 brick
T48SR
3R307		 36~75 3.3 25 19.1x23.4x8.9 –40°C
to
+85°C		 效率86% @ 3.3V/7.5A,隔离电压1500VDC 1/32 brick
S48SP
3R310		 36~75 3.3 33 33x24.4x8.55 –40°C
to
+110°C		 效率90% @ 3.3V/10A,隔离电压2250VDC 1"x1"

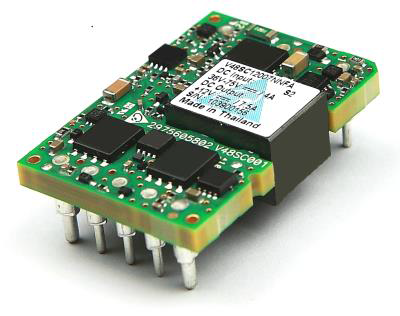

V48SC
3R315		 36~75 3.3 49.5 33x22.8x9.5 –40°C
to
+85°C		 效率91.5% @ 3.3V/15A,隔离电压1500VDC 1/16 brick

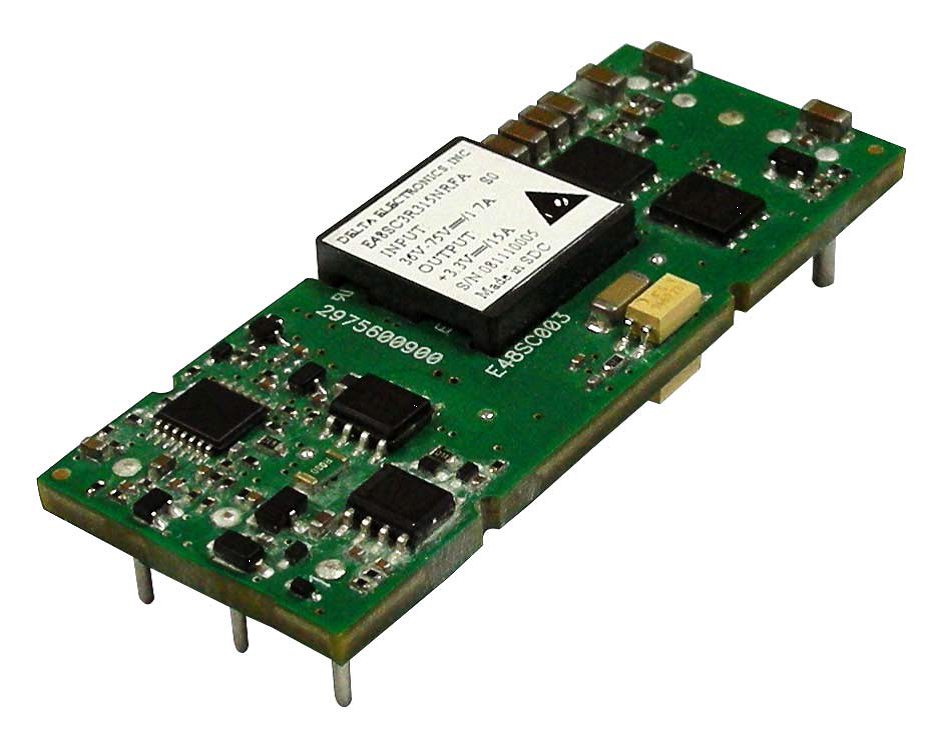

E48SC
3R315		 36~75 3.3 50 58.4x22.8x9 –40°C
to
+102°C		 效率91% @ 3.3V/15A,隔离电压2250VDC 1/8 brick
T48SR
05005		 36~75 5 25 19.1x23.4x8.9 –40°C
to
+85°C		 效率86% @ 5V/5A,隔离电压1500VDC 1/32 brick
S48SP
05007		 36~75 5 35 33x24.4x8.55 –40°C
to
+85°C		 效率90% @5V/7A,隔离电压2250VDC 1"x1"
S36SE
12002		 36~75 12 24 27.9x24.4x8.7 –40°C
to
+85°C		 效率87% @12V/2A,隔离电压2250VDC 1"x1"
S48SP
12003		 36~75 12 36 33x24.4x8.55 –40°C
to
+113°C		 效率90% @ 12V/3A,隔离电压2250VDC 1"x1"
S24SE
3 R303		 9~36 3.3 10 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24SE
3R305		 9~36 3.3 15 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24SE
3R306		 9~36 3.3 20 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24SE
3R307		 9~36 3.3 30 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24SE
05002		 9~36 5 10 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24SE
05003		 9~36 5 15 25.4x25.4x10.2 –40°C
to
+85°C		 效率89%,隔离电压1600VDC 1"x1"
S24SE
05004		 9~36 5 20 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24SE
05006		 9~36 5 30 25.4x25.4x10.2 –40°C
to
+85°C		 效率89%,隔离电压1600VDC 1"x1"
S24SE
120R8		 9~36 12 10 25.4x25.4x10.2 –40°C
to
+85°C		 效率86%,隔离电压1600VDC 1"x1"

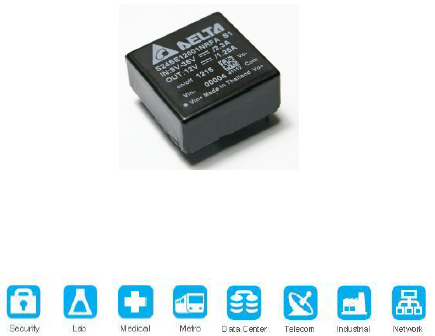

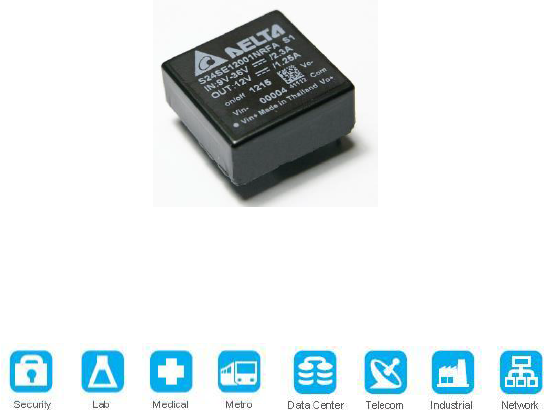

S24SE
12001		 9~36 12 15 25.4x25.4x10.2 –40°C
to
+85°C		 效率87.5%,隔离电压1600VDC 1"x1"
S24SE
12002		 9~36 12 20 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"

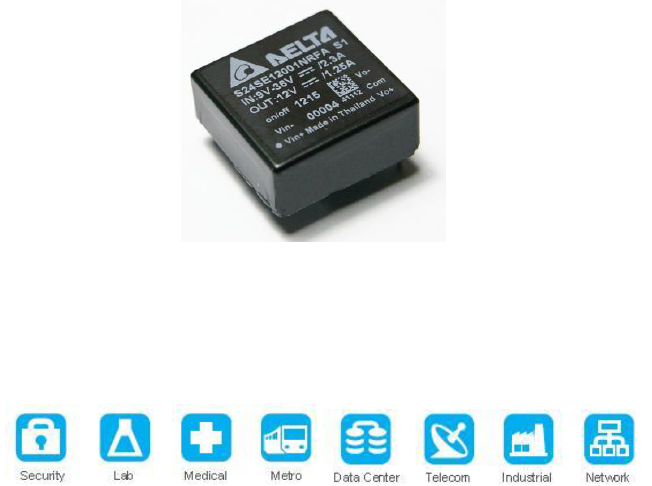

S24SE
12003		 9~36 12 30 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24DE
120R4		 9~36 ±12 10 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24DE
120R6		 9~36 ±12 15 25.4x25.4x10.2 –40°C
to
+85°C		 效率87.5%,隔离电压1600VDC 1"x1"
S24DE
120R8		 9~36 ±12 20 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24DE
12001		 9~36 ±12 30 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24SE
150R6		 9~36 15 10 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24SE
150R9		 9~36 15 15 25.4x25.4x10.2 –40°C
to
+85°C		 效率87.5%,隔离电压1600VDC 1"x1"
S24SE
15001		 9~36 15 20 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24SE
15002		 9~36 15 30 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24DE
150R3		 9~36 ±15 10 25.4x25.4x10.2 –40°C
to
+85°C		 效率87%,隔离电压1600VDC 1"x1"
S24DE
150R5		 9~36 ±15 15 25.4x25.4x10.2 –40°C
to
+85°C		 效率87.5%,隔离电压1600VDC 1"x1"
S24DE
150R6		 9~36 ±15 20 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24DE
15001		 9~36 ±15 30 25.4x25.4x10.2 –40°C
to
+85°C		 效率88%,隔离电压1600VDC 1"x1"
S24SP
05008		 9~36 5 40 50.8x25.4x10.5 –40°C
to
+85°C		 效率92.8%,隔离电压1500VDC 2"x1"
S24SP
12004		 9~36 12 40 50.8x25.4x10.5 –40°C
to
+85°C		 效率92.8%,隔离电压1500VDC 2"x1"
S24SP
15003		 9~36 15 40 50.8x25.4x10.5 –40°C
to
+85°C		 效率93.7%,隔离电压1500VDC 2"x1"
S24SP
24002		 9~36 24 40 50.8x25.4x10.5 –40°C
to
+85°C		 效率92.5%,隔离电压1500VDC 2"x1"

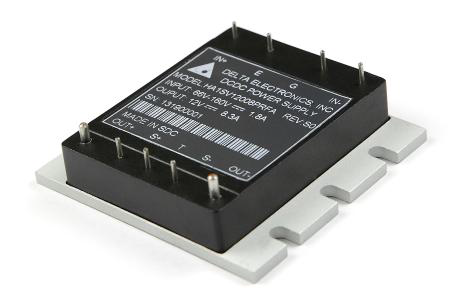

HA1SV
12004		 53~154 12 50 61x57.9x12.7 –40°C
to
+100°C		 效率86% @110Vin full load,隔离电压3000Vrms 1/2 brick
HA1SV
24002		 53~154 24 50 61x57.9x12.7 –40°C
to
+100°C		 效率87% @110Vin full load,隔离电压3000Vrms 1/2 brick
S24SP
05012		 9~36 5 60 50.8x25.4x10.5 –40°C
to
+85°C		 效率92.4%,隔离电压1500VDC 2"x1"
S24SP
12005		 9~36 12 60 50.8x25.4x10.5 –40°C
to
+85°C		 效率92.8%,隔离电压1500VDC 2"x1"
S24SP
15004		 9~36 15 60 50.8x25.4x10.5 –40°C
to
+85°C		 效率93.3%,隔离电压1500VDC 2"x1"
S24SP
24003		 9~36 24 60 50.8x25.4x10.5 –40°C
to
+85°C		 效率93%,隔离电压1500VDC 2"x1"
E24SR
3R320		 18~36 3.3 66 58.4x22.8x10 –40°C
to
+114°C		 效率90% @ 3.3V/ 20A,隔离电压2250VDC 1/8 brick
E24SR
06508		 18~36 6.5 52 58.4x22.8x10 –40°C
to
+116°C		 效率90.5% @ 6.5V/ 8A,隔离电压2250VDC 1/8 brick

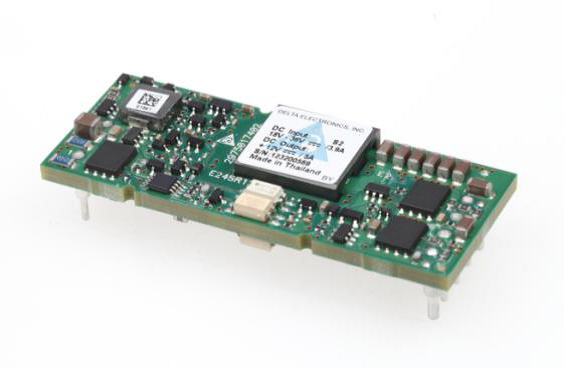

E24SR
12005		 18~36 12 60 58.4x22.8x10 　 效率90.5% @ 12V/ 5A,隔离电压2250VDC 1/8 brick
E36SR
3R320		 18~75 3.3 66 58.4x22.8x9.2 –40°C
to
+122°C		 效率88% @ 3.3V/ 20A,隔离电压2250VDC 1/8 brick
E36SR
05015		 18~75 5 75 58.4x22.8x9.2 –40°C
to
+85°C		 效率89% @ 5V/ 15A,隔离电压2250VDC 1/8 brick
V36SE
12005		 18~75 12 60 33x22.8x8.8 –30°C
to
+85°C		 效率88% @ 12V/5A, 48Vin,隔离电压2250VDC 1/8 brick
E48SH
1R250		 36~75 1.2 60 58.4x22.8x9.5 –40°C
to
+130°C		 效率86.5% @1.2V/50A, 隔离电压2250VDC 1/8 brick
E48SH
1R540		 36~75 1.5 60 58.4x22.8x9.5 –40°C
to
+125°C		 效率89% @1.5V/40A, 隔离电压2250VDC 1/8 brick
V48SH
1R830		 36~75 1.8 54 33x22.8x9.5 –40°C
to
+120°C		 效率89% @ 1.8V/30A, 隔离电压1500VDC 1/16 brick
E48SH
1R840		 36~75 1.8 72 58.4x22.8x9.5 –40°C
to
+128°C		 效率90% @1.8V/40A, 隔离电压2250VDC 1/8 brick
V48SH
1R840		 36~75 1.8 72 33x22.8x9.5 –40°C
to
+120°C		 效率88.5% @ 1.8V/40A, 隔离电压1500VDC 1/16 brick
E48SH
2R535		 36~75 2.5 88 58.4x22.8x9.5 –40°C
to
+128°C		 效率89.5% @2.5V/35A, 隔离电压2250VDC 1/8 brick
E48SC
3R320		 36~75 3.3 66 58.4x22.8x9 –40°C
to
+110°C		 效率91% @ 3.3V/20A, 隔离电压2250VDC 1/8 brick
V48SC
3R320		 36~75 3.3 66 33x22.8x9.5 –40°C
to
+85°C		 效率91% @ 3.3V/20A, 隔离电压1500VDC 1/16 brick
E48SC
3R325		 36~75 3.3 82.5 58.4x22.8x9 –40°C
to
+115°C		 效率91% @ 3.3V/25A, 隔离电压1500VDC 1/8 brick
H48SC
3R325		 36~75 3.3 82.5 61x57.9x10 –40°C
to
+116°C		 效率93% @ 3.3V/25A, 隔离电压2250VDC 1/2 brick
V48SC
3R325		 36~75 3.3 82.5 33x22.8x9.5 –40°C
to
+85°C		 效率90% @ 3.3V/25A, 隔离电压1500VDC 1/16 brick
V48SH
3R325		 36~75 3.3 82.5 33x22.8x9.5 –40°C
to
+118°C		 效率91% @ 3.3V/25A, 隔离电压1500VDC 1/16 brick
E48SH
3R330		 36~75 3.3 99 58.4x22.8x9.5 –40°C
to
+85°C		 效率92.0% @3.3V/30A, 隔离电压2250VDC 1/8 brick
V48SH
3R330		 36~75 3.3 99 33x22.8x9.5 –40°C
to
+120°C		 效率91.0% @3.3V/30A, 隔离电压1500VDC 1/16 brick
E48SH
05020		 36~75 5 100 58.4x22.8x9.5 –40°C
to
+129°C		 效率90% @5V/20A, 隔离电压2250VDC 1/8 brick
V48SC
05020		 36~75 5 100 33x22.8x9.5 –40°C
to
+85°C		 效率91% @5V/20A, 隔离电压1500VDC 1/16 brick
V48SH
05020		 36~75 5 100 33x22.8x9.5 –40°C
to
+121°C		 效率91.5% @5V/20A, 隔离电压1500VDC 1/16 brick
E48SC
05012		 36~75 5 60 58.4x22.8x9

–40°C
to
+113°C

 效率91.5% @ 5.0V/12A, 隔离电压1500VDC 1/8 brick
V48SC
05013		 36~75 5 65 33x22.8x9.5 –40°C
to
+85°C		 效率91.5% @ 5V/13A, 隔离电压1500VDC 1/16 brick
E48SC
05015		 36~75 5 75 58.4x22.8x9 –40°C
to
+113°C		 效率91.0% @ 5.0V/15A, 隔离电压1500VDC 1/8 brick
V48SC
05017		 36~75 5 85 33x22.8x9.5 –40°C
to
+85°C		 效率91.5% @ 5V/17A, 隔离电压1500VDC 1/16 brick
V48SH
05017		 36~75 5 85 33x22.8x9.5 –40°C
to
+121°C		 效率91.5% @ 5V/17A, 隔离电压1500VDC 1/16 brick
E48SC
12005		 36~75 12 60 58.4x22.8x8.4 –40°C
to
+117°C		 效率92% @ 12V/5A, 隔离电压2250VDC 1/8 brick
V48SC
12007		 36~75 12 90 33x22.8x9.5 –40°C
to
+85°C		 效率92.0% @ 12V/7.5A, 隔离电压1500VDC 1/16 brick
E48SC
12008		 36~75 12 96 58.4x22.8x8.4 –40°C
to
+85°C		 效率92.0% @ 12V/8A, 隔离电压2250VDC 1/8 brick
V48SC
12008		 36~75 12 99.6 33x22.8x9.5 –40°C
to
+85°C		 效率92.0% @ 12V/8.3A, 隔离电压1500VDC 1/16 brick
V48SR
15004		 36~75 15 66 33x22.8x9.5 –40°C
to
+121°C		 效率90.5% @ 15V/4.4A, 隔离电压2250VDC 1/16 brick
Q48SA
54001		 36~75 54 81 57.9x36.8x9.8 –40°C
to
+115°C		 效率92% @54V/1.5A, 隔离电压2250VDC 1/4 brick

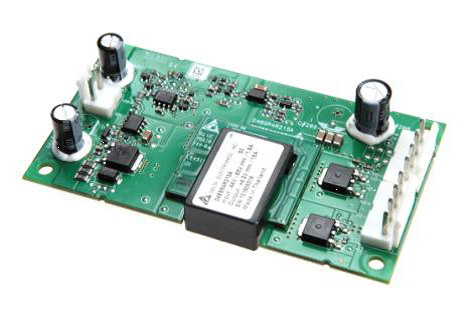

D48SR4
R215A		 44~65 4.2 63 88x48x19 –40°C
to
+65°C		 效率91.7% @ 4.2V/15A, 隔离电压500VDC Through hole
HA1SV
12008		 53~154 12 100 61x57.9x12.7 –40°C
to
+100°C		 效率86% @110Vin full load, 隔离电压3000VDC 1/2 brick
HA1SV
15007		 53~154 15 100 61x57.9x12.7 –40°C
to
+100°C		 效率88.5% @110Vin full load, 隔离电压3000VDC 1/2 brick
E36SC
3R335		 18~75 3.3 116 58.4x22.8x11 –40°C
to
+85°C		 效率91% @ 3.3V/35A, 隔离电压1500VDC 1/8 brick
E36SC
05025		 18~75 5 125 58.4x22.8x11 –40°C
to
+85°C		 效率91% @ 5V/25A, 隔离电压1500VDC 1/8 brick
E36SC
12009		 18~75 12 108 58.4x22.8x11 –40°C
to
+85°C		 效率92% @ 12V/9A, 隔离电压1500VDC 1/8 brick
Q36SR
12017		 18~75 12 204 58.4x36.8x11.7 –40°C
to
+85°C		 效率93% @ 12V/17A, 隔离电压1500VDC 1/4 brick
Q36SR
12019		 18~75 12 228 58.4x36.8x11.7 –40°C
to
+85°C		 效率93% @ 12V/19A, 隔离电压1500VDC 1/4 brick
Q36SR
12020		 18~75 12 240 58.4x36.8x11.7 –40°C
to
+85°C		 效率93% @ 12V/20A, 隔离电压2250VDC 1/4 brick
H36SA
54003		 18~75 54 162 61x57.9x13.2 –40°C
to
+85°C		 效率93.5% @ 54V/3A, 隔离电压2828VDC 1/2 brick
E36SC
12010		 18~75 12 120 58.4x22.8x11 –40°C
to
+85°C		 效率92.5% @24Vin /8A, 隔离电压1500VDC 1/8 brick
E36SC
05527		 18~75 5.5 150 58.4x22.8x11 –40°C
to
+85°C		 效率91% @ 5.5 V/ 27A, 隔离电压1500VDC 1/8 brick
E48SP
12020		 36~60 12 240 58.4x22.8x11 –40°C
to
+122°C		 效率94.5% @12V/20A, 隔离电压1500VDC 1/8 brick
E48SP
3R340		 36~75 3.3 132 58.4x22.8x11 –40°C
to
+85°C		 效率93.1% @ 3.3V/40A, 隔离电压2250VDC 1/8 brick
E48SP
3R360		 36~75 3.3 198 58.4x22.8x11 –40°C
to
+118°C		 效率92.3% @ 3.3V/60A, 隔离电压2250VDC 1/8 brick
E48SP
05040		 36~75 5 200 58.4x22.8x11 –40°C
to
+85°C		 效率94% @ 5V/40A, 隔离电压1500VDC 1/8 brick
E48SH
12010		 36~75 12 120 58.4x22.8x9.5 –40°C
to
+85°C		 效率93% @12V/10A, 隔离电压2250VDC 1/8 brick
Q48SQ
12018		 36~75 12 216 57.9x36.8x10.5 –40°C
to
+85°C		 效率95% @ 12V/18A, 隔离电压1500VDC 1/4 brick
E48SC
12020		 36~75 12 240 58.4x22.8x11 –40°C
to
+85°C		 效率95. 2% @48Vin/20A, 隔离电压1500VDC 1/8 brick
E48SP
12020		 36~75 12 240 58.4x22.8x11 –40°C
to
+122°C		 效率94.5% @12V/20A, 隔离电压2250VDC 1/8 brick
E48SC
12025		 36~75 12 300 58.4x22.8x11 –40°C
to
+85°C		 效率95% @48Vin/25A, 隔离电压1500VDC 1/8 brick
H48SA
12025		 36~75 12 300 61x58.4x11.2 –40°C
to
+122°C		 效率93.2% @ 12V/ 25A, 隔离电压2250VDC 1/2 brick
Q48SC
12025		 36~75 12 300 58.4x36.8x11.2 –40°C
to
+85°C		 效率95.1% @48Vin/25A, 隔离电压1500VDC 1/4 brick
Q48SQ
12025		 36~75 12 300 57.9x36.8x11.2 –40°C
to
+85°C		 效率95.5% @ 12V/25A, 隔离电压1500VDC 1/4 brick
Q48SC
12033		 36~75 12 400 58.4x36.8x11.2 –40°C
to
+85°C		 效率95% @48Vin/33A, 隔离电压1500VDC 1/4 brick
Q48SQ
12033		 36~75 12 400 57.9x36.8x13.2 –40°C
to
+85°C		 效率95.5% @ 12V/33A, 隔离电压1500VDC 1/4 brick
Q48SC
12042		 36~75 12 500 58.4x36.8x12.7 –40°C
to
+85°C		 效率95% @48Vin/42A, 隔离电压1500VDC 1/4 brick
H48SA
28016		 36~75 28 450 61x57.9x12.7 –40°C
to
+98°C		 效率92.7% @ 28V/16A, 隔离电压1500VDC 1/2 brick
H48SC
28016		 36~75 28 450 61x57.9x11.3 –40°C
to
+85°C		 效率95% @ 28 V/ 16 A, 隔离电压1500VDC 1/2 brick
H48SA
48003		 36~75 48 150 61x58.4x9.8 –40°C
to
+132°C		 效率92% @48V/3.2A, 隔离电压2250VDC 1/2 brick
Q48SC
12050		 36~75 12 600 58.4x36.8x12.7 –40°C
to
+85°C		 效率94.2 @ 48Vin/50A,95.6% @ 48Vin/30A 隔离电压1500VDC 1/4 brick
E48SC
12030		 36~75 12 360 58.4x22.8x11 –40°C
to
+85°C		 效率94.5% @ 48Vin/30 A ,隔离电压1500VDC 1/8 brick
E48SC
12010		 36~75 12 120 58.4x22.8x8.4 –40°C
to
+85°C		 效率91.7% @ 12V/10A ,隔离电压2250VDC 1/8 brick
E48SH
12013		 36~75 12 150 58.4x22.8x9.5 –40°C
to
+85°C		 效率93% @12V/13A ,隔离电压2250VDC 1/8 brick
H48SA
53010		 38~60 54 550 61x58.4x11.2 –5°C
to
+108°C		 效率94.2% @ 54V/ 10.2A ,隔离电压2250VDC 1/2 brick
Q54SJ
12058		 40~60 12.2 700 57.9x36.8x12 –40°C
to
+85°C		 效率96.4% @ 12.2V/57.4A out ,隔离电压800VDC 1/4 brick
E54SJ
3R350		 40~60 3.3 165 58.4x22.8x11.5 –40°C
to
+85°C		 效率94% @ 3.3V/50A ,隔离电压1500VDC 1/8 brick
E54SJ
12040		 40~60 12.2 480 58.4x22.8x12.2 –20°C
to
+85°C		 效率97.2% at 60Vin, 96.7%
at 54Vin ,隔离电压707VDC		 1/8 brick
Q54SG
12050		 40~60 12 600 58.4x36.8x13.2 –40°C
to
+85°C		 效率96.7% @ half Load ,隔离电压2250VDC 1/4 brick
E54SD
12025		 42~60 12 300 58.4x22.8x11 –40°C
to
+85°C		 效率95.2% @ 54 Vin/ 25A Iout ,隔离电压1500VDC 1/8 brick
Q54SG
12033		 42~60 12 400 58.4 x 36.8 x 12.7 –40°C
to
+85°C		 效率96.3% @ 100% Load ,隔离电压2250VDC 1/4 brick
V48SC
12010		 42~60 12 120 33x22.8x9.5 –40°C
to
+85°C		 效率91.1% @ 12V/10A ,隔离电压1500VDC 1/16 brick

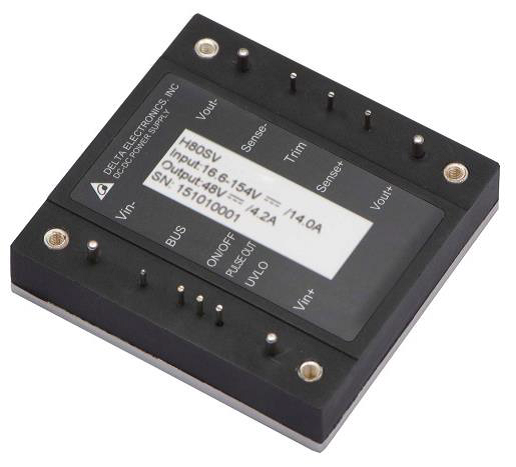

H80SV
12017		 16.8~137.5 12 200 63.1x60.6x13 –40°C
to
+85°C		 效率90% @72Vin 12Vout ,隔离电压4242VDC 1/2 brick
HA1SV
24005		 53~154 24 120 61x57.9x12.7 –40°C
to
+100°C		 效率89% @ 110Vin full load ,隔离电压3000VDC 1/2 brick


分享到：
下一篇：没有了

  • 友情链接
  • Copyright © NuPower 芯创能 —— 美国Vicor电源官方总代理 © 2016 All Rights Reserved Power by Nupower
  • ICP备案号：粤ICP备2021036723号
