产品图片 |
系列 |
输入电压
（VDC） |
输出电压
(VDC) |
输出 电流
（A） |
输出功
(W) |
尺寸
（mm） |
工作
温度 |
产品简介 |
封装
Package |
 |
DNK05S
0A0R30 |
4.5~5.5 |
0.8~3.63 |
30 |
109 |
50.8x12.7x14 |
-40℃
to
+85℃ |
效率95% @ 5Vin, 3.3V/30A out (SIP)，非隔离 |
SIP |
 |
DNK12S
0A0R30 |
6~14 |
0.8~5 |
30 |
150 |
33x13.5x10 |
-40℃
to
+85℃ |
效率95% @ 12Vin, 5V/30A out (SIP)，非隔离 |
SIP |
 |

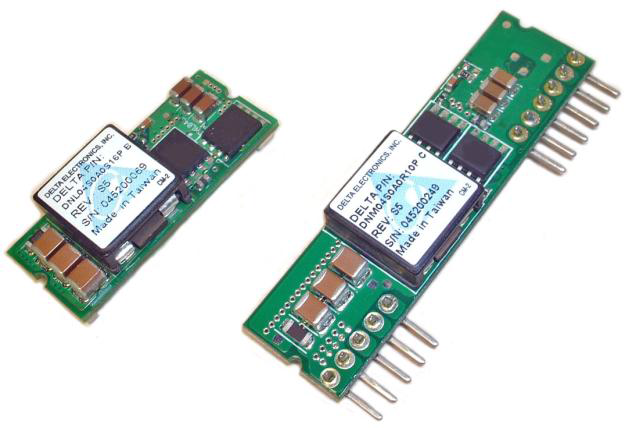

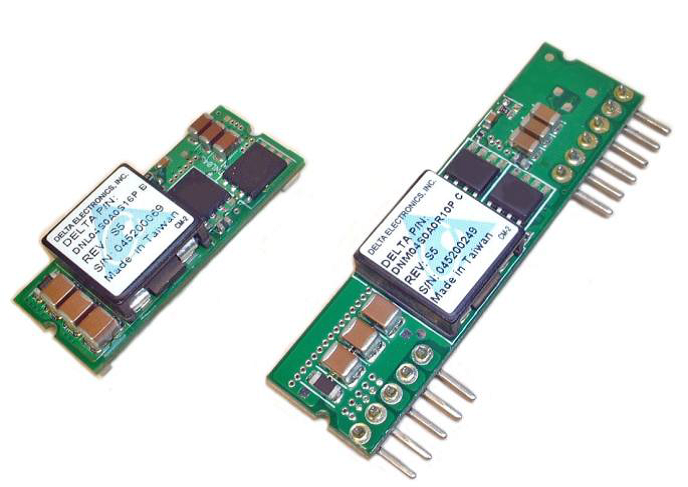

DNL04S
0A0R16 |
2.8~5.5 |
0.75~3.63 |
16 |
58 |
50.8x13.4x8.5 |
-40℃
to
+85℃ |
效率95% @ 5.0Vin, 3.3V/16A out，非隔离 |
SIP |
 |
DNL04S
0A0S16 |
2.8~5.5 |
0.75~3.63 |
16 |
58 |
33x13.5x10 |
-40℃
to
+85℃ |
效率95% @ 5.0Vin, 3.3V/16A out，非隔离 |
SMD |
 |
DNL10S
0A0R16 |
8.3~14 |
0.75~5 |
16 |
80 |
50.8x13.4x8.5 |
-40℃
to
+85℃ |
效率92% @ 12Vin, 3.3V/16A out，非隔离 |
SIP |
 |
DNL10S
0A0S16 |
8.3~14 |
0.75~5 |
16 |
80 |
33x13.5x10 |
-40℃
to
+85℃ |
效率92% @ 12Vin, 3.3V/16A out，非隔离 |
SMD |
 |

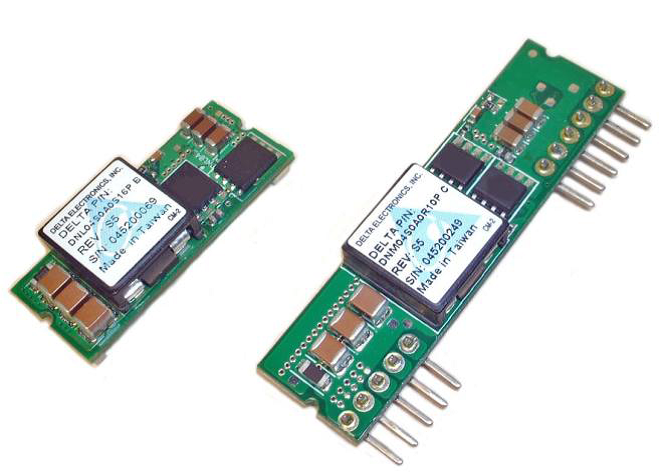

DNM04S
0A0R10 |
2.8~5.5 |
0.75~3.63 |
10 |
36 |
50.8x12.7x9.5 |
-40℃
to
+85℃ |
效率96% @ 5.0Vin, 3.3V/10A out，非隔离 |
SIP |
 |
DNM04S
0A0S10 |
2.8~5.5 |
0.75~3.63 |
10 |
36 |
33x13.5x8.8 |
-40℃
to
+85℃ |
效率96% @ 5.0Vin, 3.3V/10A out，非隔离 |
SMD |
 |
DNM10S
0A0R10 |
8.3~14 |
0.75~5 |
10 |
50 |
50.8x12.7x9.5 |
-40℃
to
+85℃ |
效率93% @ 12Vin, 3.3V/10A out，非隔离 |
SIP |
 |
DNM10S
0A0S10 |
8.3~14 |
0.75~5 |
10 |
50 |
33x13.5x8.8 |
-40℃
to
+85℃ |
效率93% @ 12Vin, 3.3V/10A out，非隔离 |
SMD |
 |

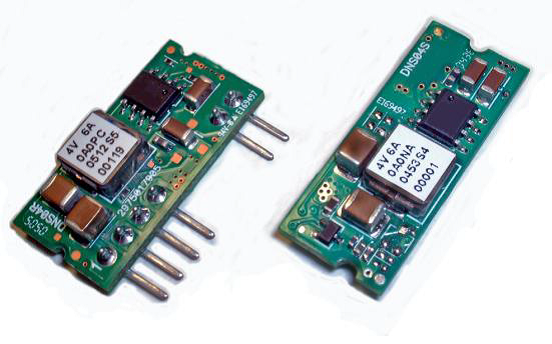

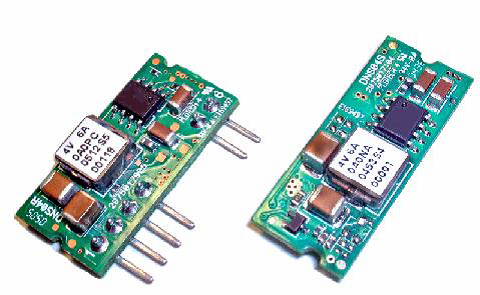

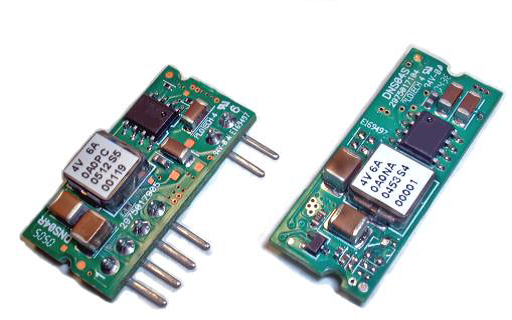

DNS04S
0A0R06 |
2.8~5.5 |
0.75~3.63 |
6 |
22 |
25.4x12.7x6.6 |
-40℃
to
+85℃ |
效率94% @ 5.0Vin, 3.3V/6A out，非隔离 |
SIP |
 |
DNS04S
0A0S06 |
2.8~5.5 |
0.75~3.63 |
6 |
22 |
27.94x11.43x7.11 |
-40℃
to
+85℃ |
效率94% @ 5.0Vin, 3.3V/6A out，非隔离 |
SMD |
 |
DNS10S
0A0R06 |
8.3~14 |
0.75~5 |
6 |
30 |
25.4x12.7x6.6 |
-40℃
to
+85℃ |
效率89.5%@ 12Vin, 3.3V/6A out，非隔离 |
SIP |
 |
DNS10S
0A0S06 |
8.3~14 |
0.75~5 |
6 |
30 |
27.94x11.43x7.11 |
-40℃
to
+85℃ |
效率89.5%@ 12Vin, 3.3V/6A out，非隔离 |
SMD |
 |
DNT04S
0A0R03 |
2.4~5.5 |
0.75~3.63 |
3 |
11 |
22.86x10.16x6.35 |
-40℃
to
+85℃ |
效率94%@ 5Vin, 3.3V/3A out，非隔离 |
SIP |
 |
DNT04S
0A0R05 |
2.4~5.5 |
0.75~3.63 |
5 |
18 |
22.86x10.16x6.35 |
-40℃
to
+85℃ |
效率93%@ 5Vin, 3.3V/5A out，非隔离 |
SIP |
 |
DNT04S
0A0S03 |
2.4~5.5 |
0.75~3.63 |
3 |
11 |
20.32x11.43x6.86 |
-40℃
to
+85℃ |
效率93%@ 5Vin, 3.3V/3A out，非隔离 |
SMD |
 |
DNT04S
0A0S05 |
2.4~5.5 |
0.75~3.63 |
5 |
18 |
20.32x11.43x6.86 |
-40℃
to
+85℃ |
效率93.5%@ 5Vin, 3.3V/5A out，非隔离 |
SMD |
 |

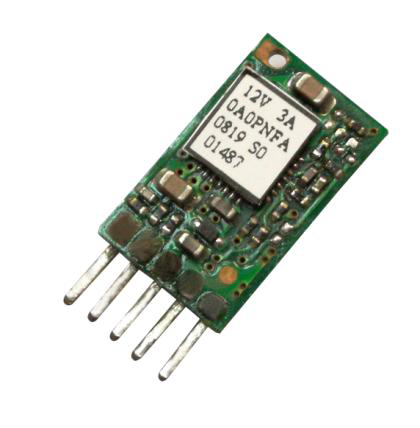

DNT12S
0A0R03 |
8.3~14 |
0.75~5 |
3 |
15 |
22.86x10.16x6.35 |
-40℃
to
+85℃ |
效率92.5% @ 12Vin, 5V/3A out，非隔离 |
SIP |
 |
DNT12S
0A0R05 |
8.3~14 |
0.75~5 |
5 |
25 |
22.86x10.16x6.35 |
-40℃
to
+85℃ |
效率92% @ 12Vin, 5V/5A out，非隔离 |
SIP |
 |
DNT12S
0A0S03 |
8.3~14 |
0.75~5 |
3 |
15 |
20.32x11.43x6.86 |
-40℃
to
+85℃ |
效率93.0% @ 12Vin, 5.0V/3A out，非隔离 |
SMD |
 |
DNT12S
0A0S05 |
8.3~14 |
0.75~5 |
5 |
25 |
20.32x11.43x6.86 |
-40℃
to
+85℃ |
效率92.0% @ 12Vin, 5V/5A out，非隔离 |
SMD |
 |
DNL10S
0A0R20 |
8.3~14 |
0.75~5 |
20 |
100 |
50.8x12.7x9.5 |
-40℃
to
+85℃ |
效率93.5% @ 12Vin, 5V/20A out，非隔离 |
SIP |
 |

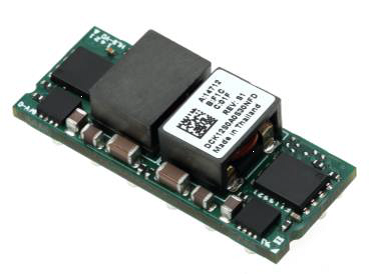

DCK12S
0A0S30 |
6~14 |
0.8~3.3 |
30 |
99 |
33x13.5x10 |
-40℃
to
+85℃ |
效率92.8% @ 12Vin, 3.3V/30A out，非隔离 |
SMD |
 |

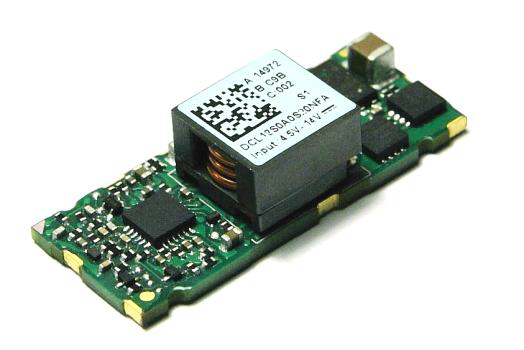

DCL12S
0A0S20 |
4.5~14 |
0.69~5 |
20 |
100 |
33.02x13.46x8.5 |
-40℃
to
+85℃ |
效率93% @ 12Vin, 5V/20A out， 92% @ 12Vin, 3.3V/20A out,
90% @ 12Vin, 2.5V/20A out,
89% @ 12Vin, 1.8V/20A out,
83% @ 12Vin, 1.2V/20A out,
79% @ 10Vin, 0.69V/20A out, 非隔离 |
SMD |
 |
DCM04S
0A0S12 |
2.4~5.5 |
0.6~3.3 |
12 |
39.6 |
20.3x11.4x8.5 |
-40℃
to
+85℃ |
效率95% @ 5.0Vin, 3.3V/12A out，非隔离 |
SMD |
 |

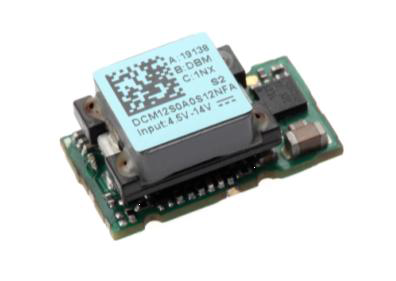

DCM12S
0A0S12 |
4.5~14 |
0.69~5.5 |
12 |
66 |
20.3x11.4x8.5 |
-40℃
to
+85℃ |
效率95.4% @ 12Vin, 5.0V/12A out，93.3% @ 12Vin, 3.3V/12A out, 91.6% @ 12Vin, 2.5V/12A out, 89.2% @ 12Vin, 1.8V/12A out, 85.6% @ 12Vin, 1.2V/12A out, 80.2% @ 10Vin, 0.69V/12A out, 非隔离 |
SMD |
 |
PM05S
015A |
4.75~32 |
1.5 |
0.5 |
0.75 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率63-73%，非隔离 |
SIP |
PM05S
018A |
4.75~32 |
1.8 |
0.5 |
0.9 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率71-82%，非隔离 |
SIP |
PM05S
025A |
4.75~32 |
2.5 |
0.5 |
1.25 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率77-87%，非隔离 |
SIP |

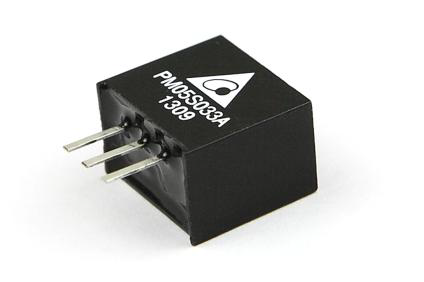

PM05S
033A |
4.75~32 |
3.3 |
0.5 |
1.65 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率81-91%，非隔离 |
SIP |
PM05S
050A |
6.5~32 |
5 |
0.5 |
2.5 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率86-94%，非隔离 |
SIP |
PM05S
065A |
8~32 |
6.5 |
0.5 |
3.25 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率88-95%，非隔离 |
SIP |
PM05S
090A |
11~32 |
9 |
0.5 |
4.5 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率92-96%，非隔离 |
SIP |
PM05S
120A |
15~32 |
12 |
0.5 |
6 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率94-97%，非隔离 |
SIP |
PM05S
150A |
18~32 |
15 |
0.5 |
7.5 |
11.5x7.55x10.2 |
-40℃
to
+90℃ |
效率95-97%，非隔离 |
SIP |
 |

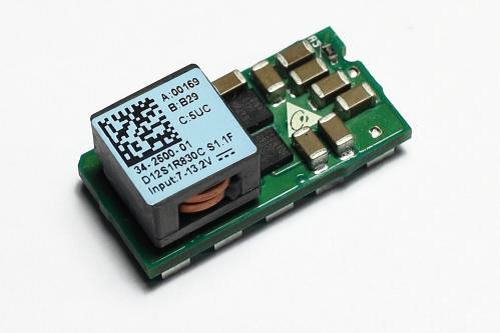

D12S1R
830D |
7~13.2 |
0.8~1.8 |
30 |
54 |
25.4x12.7x12.2 |
0℃
to
+113℃ |
效率91.5%@ 11Vin, 1.8V/30A out,
88% @ 11Vin, 1.0V/30A out，非隔离 |
SMD |
 |
D12S1R
845D |
7~13.2 |
0.6~3.3 |
45 |
115.5 |
25.4x12.7x12.2 |
-40℃
to
+85℃ |
效率95.3%@ 11Vin, 3.3V/35A out,
94.3%@ 11Vin, 2.5V/40A out,
93.0% @ 11Vin, 1.8V/45A out,
89.3%@ 11Vin, 1.0V/45A out， 非隔离 |
SMD |
 |

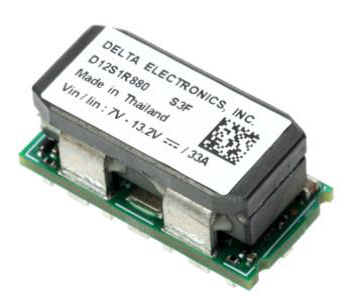

D12S1R
880D |
7~13.2 |
0.6~3.3 |
80 |
264 |
25.4x12.7x12.2 |
-40℃
to
+85℃ |
效率95.5%@ 11Vin, 3.3V/65A out
94.7%@ 11Vin, 2.5V/70A out
93.3%@ 11Vin, 1.8V/80A out
91.0%@ 11Vin, 1.0V/80A out
87.0%@ 11Vin, 0.6V/80A out， 非隔离 |
SMD |
 |
D12S1R
860D |
7~13.2 |
0.6~3.3 |
60 |
165 |
25.4x12.7x12.2 |
-40℃
to
+85℃ |
效率94.1%@ 11Vin, 3.3V/50A out
92.8%@ 11Vin, 2.5V/55A out
91.5%@ 11Vin, 1.8V/60A out
88.0%@ 11Vin, 1.0V/60A out
83.0%@ 11Vin, 0.6V/60A out， 非隔离 |
SMD |
 |

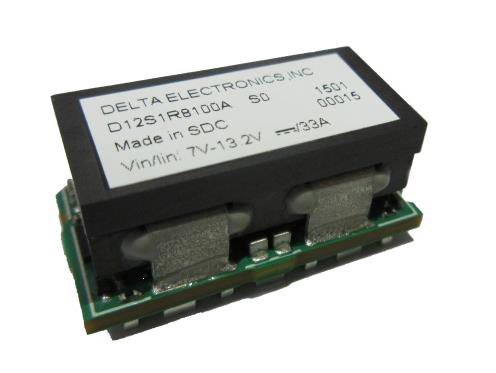

D12S1R
8100D |
7~13.2 |
0.6~3.3 |
100 |
180 |
25.4x12.7x12.2 |
-40℃
to
+85℃ |
效率95.5%@ 11Vin, 3.3V/65A out
94.7%@ 11Vin, 2.5V/70A out
93.3% @11Vin, 1.8V/80A out
89.7%@ 11Vin, 1.2V/95A out
88.7%@ 11Vin, 1.0V/100A out， 非隔离 |
SMD |
 |

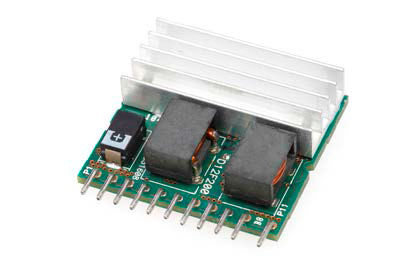

D12F2
00 |
4.5~13.8 |
0.6~5 |
40 |
200 |
30.5x27.9x11.1 |
0℃
to
+70℃ |
效率94% @ 12Vin, 5.0V/40A out， 非隔离 |
Through hole |
 |
D12S05
020-1 |
4.5~13.2 |
0.59~5 |
20 |
100 |
30.5x15.5x12 |
0℃
to
+85℃ |
效率93.4% @ 12Vin, 5V/20A out， 非隔离 |
Through hole |
 |
D12S2R
550 |
4.5~13.8 |
0.6~5 |
50 |
250 |
33.0x28.0x20.2 |
0℃
to
+70℃ |
效率93.6% @ 12Vin, 5.0V/50A， 非隔离 |
Through hole |
 |

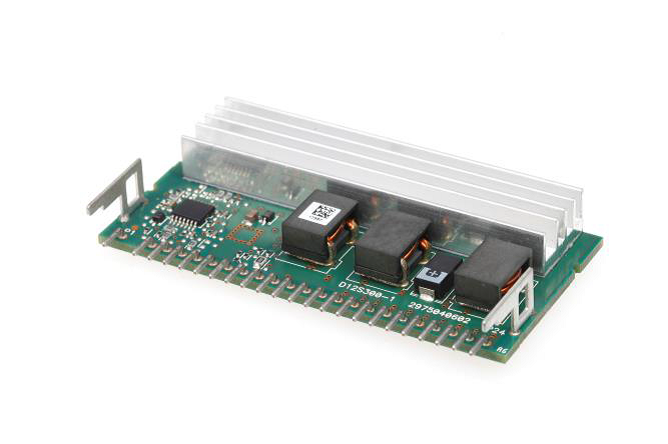

D12S3
00-1 |
4.5~13.8 |
0.6~5 |
60 |
300 |
65.53x31.75x11.0 |
0℃
to
+70℃ |
效率94% @ 12Vin, 5V/60A out， 非隔离 |
Through hole |
 |
D12S4
00 |
10.8~13.2 |
0.8375~5 |
80 |
400 |
61.0x31.8x12.3 |
0℃
to
+85℃ |
效率94% @ 12Vin, 5.0V/80A out， 非隔离 |
Through hole |
 |
DUS12
50E |
2.97~13.2 |
0.59~5 |
10 |
50 |
17.15x13.97x8.07 |
0℃
to
+50℃ |
效率92.0% @ 12Vin, 5V/10A out， 非隔离 |
SMD |
 |
NC12S0
A0H06 |
10.2~13.8 |
0.9~5 |
6 |
30 |
30.5x15.5x12.3 |
0℃
to
+125℃ |
效率91% @ 12Vin, 5V/6A out， 非隔离 |
DIP |
 |
NC12S0
A0H15 |
10.2~13.8 |
0.9~5 |
15 |
75 |
30.5x27.9x12.9 |
0℃
to
+130℃
(Vertical)
-40℃
to
+125℃
(Horizontal) |
效率91% @ 12Vin, 5V/15A out， 非隔离 |
DIP |
 |
NC12S0
A0H20 |
10.2~13.8 |
0.9~5 |
20 |
100 |
30.5x27.9x12.9 |
0℃
to
+130℃
(Vertical)
-40℃
to
+125℃
(Horizontal) |
效率91% @ 12Vin, 5V/20A out， 非隔离 |
DIP |
 |
NC12S0
A0H30 |
10.2~13.8 |
0.9~5 |
30 |
150 |
61x31.8x12.32 |
-40℃
to
+125℃ |
效率94% @ 12Vin, 5V/30A out， 非隔离 |
DIP |
 |
NC12S0
A0H40 |
10.2~13.8 |
0.9~5 |
40 |
200 |
61x31.8x12.32 |
0℃
to
+125℃ |
效率92% @ 12Vin, 5V/40A out， 非隔离 |
DIP |
 |
NC12S0
A0H60 |
11.04~12.6 |
0.9~5 |
60 |
300 |
81.28x31.95x13.5 |
0℃
to
+125℃ |
效率95% @ 12Vin, 5V/60A out， 非隔离 |
DIP |
 |
NC12S0
A0V06 |
10.2~13.8 |
0.9~5 |
6 |
30 |
30.5x15.5x11.7 |
0℃
to
+125℃ |
效率91% @ 12Vin, 5V/6A out， 非隔离 |
DIP |
 |
NC12S0
A0V15 |
10.2~13.8 |
0.9~5 |
15 |
75 |
30.5x27.9x11.4 |
0℃
to
+130℃
(Vertical)
-40℃
to
+125℃
(Horizontal) |
效率91% @ 12Vin, 5V/15A out， 非隔离 |
DIP |
 |
NC12S0
A0V20 |
10.2~13.8 |
0.9~5 |
20 |
100 |
30.5x27.9x11.4 |
0℃
to
+130℃
(Vertical)
-40℃
to
+125℃
(Horizontal) |
效率91% @ 12Vin, 5V/20A out， 非隔离 |
DIP |
 |
NC12S0
A0V30 |
10.2~13.8 |
0.9~5 |
30 |
150 |
61x31.8x13.2 |
-40℃
to
+125℃ |
效率94% @ 12Vin, 5V/30A out， 非隔离 |
DIP |
 |
NC12S0
A0V40 |
10.2~13.8 |
0.9~5 |
40 |
200 |
61x31.8x13.2 |
0℃
to
+125℃ |
效率92% @ 12Vin, 5V/40A out， 非隔离 |
DIP |
 |
NC12S0
A0V60 |
11.04~12.6 |
0.9~5 |
60 |
300 |
81.3x32x13.5 |
0℃
to
+125℃ |
效率95% @ 12Vin, 5V/60A out， 非隔离 |
DIP |
 |
ND12S0
A0V40 |
8~13.8 |
0.9~5 |
40 |
200 |
36.8x32.2x13 |
0℃
to
+85℃ |
效率94% @ 12Vin, 5V/40A out， 非隔离 |
DIP |
 |
NE12S0
A0H03 |
3~13.8 |
0.59~5 |
3 |
15 |
9.4x15.5x7.9 |
-40℃
to
+123℃
(Vertical)
-40℃
to
TBD
(Horizontal) |
效率92.5% @ 12Vin, 5V/3A out， 非隔离 |
DIP |
 |
NE12S0
A0H06 |
3~13.8 |
0.59~5.1 |
6 |
30.6 |
10.4x16.5x11.5 |
-40℃
to
+113℃
(Vertical)
-40℃
to
+118℃
(Horizontal) |
效率94.5% @ 12Vin, 5V/6A out， 非隔离 |
DIP |
 |
NE12S0
A0H10 |
3~13.8 |
0.59~5.1 |
10 |
51 |
10.4x16.5x11.5 |
-40℃
to
+109℃ |
效率94.0% @ 12Vin, 5V/10A out， 非隔离 |
DIP |
 |
NE12S0
A0V03 |
3~13.8 |
0.59~5 |
3 |
15 |
9.4x15.5x7.9 |
-40℃
to
+123℃
(Vertical)
-40℃
to
TBD
(Horizontal) |
效率92.5% @ 12Vin, 5V/3A out， 非隔离 |
DIP |
 |
NE12S0
A0V06 |
3~13.8 |
0.59~5.1 |
6 |
30.6 |
10.4x16.5x11 |
-40℃
to
+113℃
(Vertical)
-40℃
to
+118℃
(Horizontal) |
效率94.5% @ 12Vin, 5V/6A out， 非隔离 |
DIP |
 |
NE12S0
A0V10 |
3~13.8 |
0.59~5.1 |
10 |
51 |
10.4x16.5x11 |
-40℃
to
+109℃ |
效率94.0% @ 12Vin, 5V/10A out， 非隔离 |
DIP |
 |
NE12S0
A0V20 |
4.5~13.8 |
0.59~5.1 |
20 |
102 |
30.5x15.5x12 |
-40℃
to
+130℃ |
效率94.0% @ 12Vin, 5V/20A out， 非隔离 |
DIP |
 |

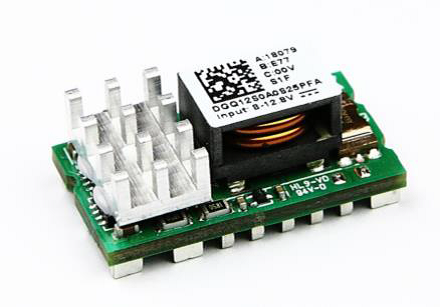

DGQ12S0
A0S25 |
8~12.8 |
0.7~3.3 |
25 |
82.5 |
22.9x12.7x10.2 |
-40℃
to
+85℃ |
效率93.7% @12Vin, 3.3V/25A out， 非隔离 |
SMD |
