产品图片 |
系列 |
输入电压（VAC） |
输出电压(VDC) |
输出功(W) |
尺寸（mm） |
工作
温度 |
产品简介 |
封装
Package |
 |

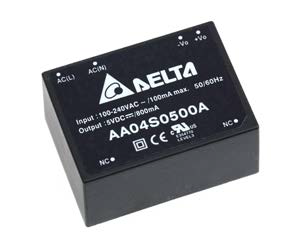

AA04S |
85-264 |
3.3, 5, 9, 12, 15, 24 |
4 |
27x36.5x17.1 |
-25℃
to
+60℃ |
高效率，隔离电压3000VAC |
PCB
Mounting |
|
AA04D |
±12, ±15, +5/+3.3, +12/+5 |
-25℃
to
+60℃ |
高效率，隔离电压3000VAC |
 |

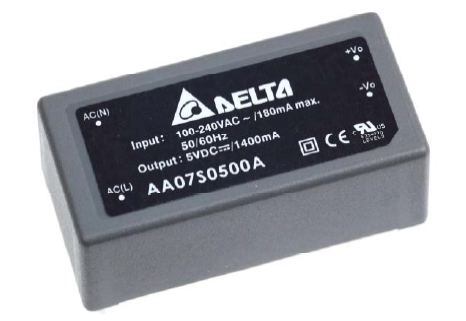

AA07S |
85-264 |
3.3, 5, 12, 15, 24 |
7 |
25.4x50.8x19.5 |
-25℃
to
+70℃ |
高效率，隔离电压3000VAC |
PCB
Mounting |
 |

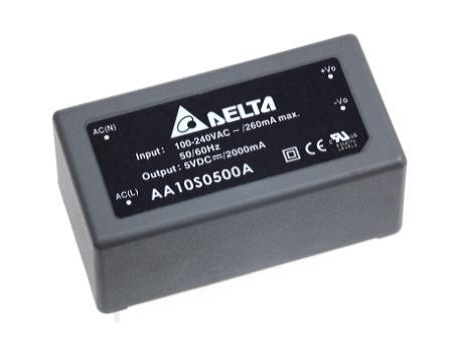

AA10S |
85-264 |
3.3, 5, 12, 15, 24 |
10 |
27.2x52.4x23.5 |
-25℃
to
+70℃ |
高效率，隔离电压3000VAC |
PCB
Mounting |
 |
AA15S |
85-264 |
5, 12, 15, 24, 48 |
15 |
96x54x23.3 |
-25℃
to
+70℃ |
高效率，隔离电压3000VAC |
PCB
or
Chassis
Mounting |
|

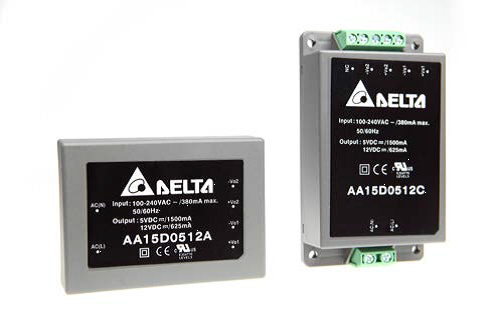

AA15D |
±12, ±15, 5/12, 5/±12 , 5/±15 |
-25℃
to
+70℃ |
高效率，隔离电压3000VAC |
 |
AA30S |
85-264 |
5, 12, 15, 24, 48, 5/12, 5/3.3/12, 3.3/5/12 |
30 |
112x63.8x25.6 |
-25℃
to
+70℃ |
高效率，隔离电压3000VAC |
PCB/
Chassis/
Din-Rail
Mount |
|

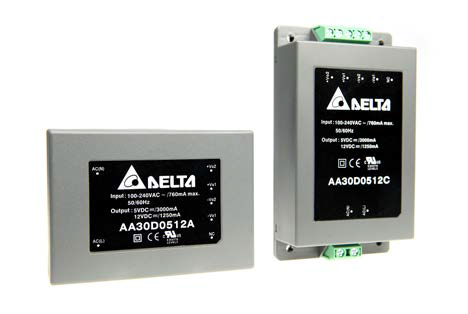

AA30D |
±12, ±15, 5/±12, 5/±15 |
-25℃
to
+70℃ |
高效率，隔离电压3000VAC |
 |

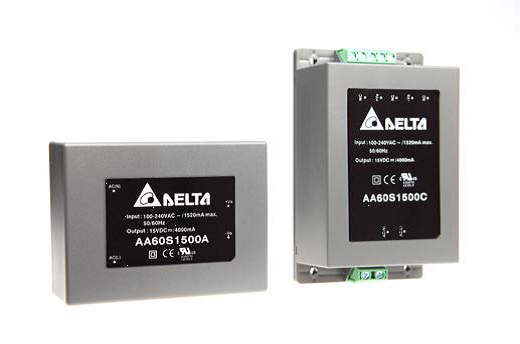

AA60S |
85-264 |
5.1, 12, 15, 24, 36 |
60 |
112x67.8x38 |
-10℃
to
+70℃ |
高效率，隔离电压3000VAC |
PCB/
Chassis/
Din-Rail
Mount |
|
AA60D |
-10℃
to
+70℃ |
高效率，隔离电压3000VAC |
 |
AB24S |
85-264 |
5, 9, 12, 15, 24 |
24 |
96x54x23.3 |
-40℃
to
+80℃ |
高效率，隔离电压4000VACrms |
PCB/
Chassis/
Din-Rail
Mount |
|
AB24D |
±12, ±15 |
-40℃
to
+80℃ |
高效率，隔离电压4000VACrms |
 |
AB40S |
85-264 |
5, 12, 15, 24 |
40 |
112x63.8x34.1 |
-40℃
to
+80℃ |
高效率，隔离电压4000VACrms |
PCB/
Chassis/
Din-Rail
Mount |
|
AB40D |
±12, ±15 |
-40℃
to
+80℃ |
高效率，隔离电压4000VACrms |
 |

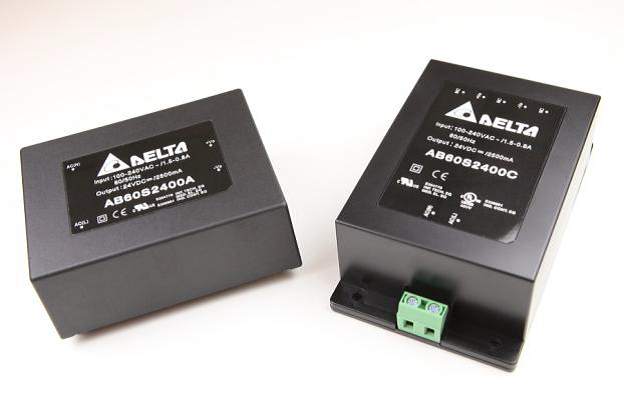

AB60S |
85-264 |
5.1, 12, 15, 24, 48 |
60 |
112x67.8x38 |
-40℃
to
+80℃ |
高效率，隔离电压4000VACrms |
PCB/
Chassis/
Din-Rail
Mount |
 |

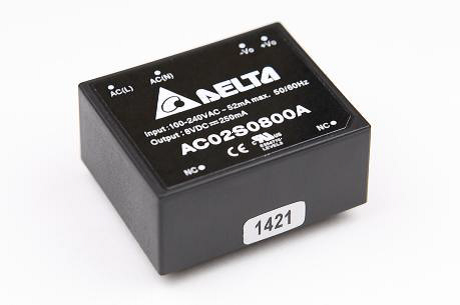

AC02S |
85-264 |
8, 14, 24, 8/3.3, 8/5, 14/3.3, 14/5 |
2 |
34.2x28.4x14.8 |
-30℃
to
+70℃ |
高效率，隔离电压3000VAC |
PCB
Mounting |
|
AC02D |
-30℃
to
+70℃ |
高效率，隔离电压3000VAC |
 |

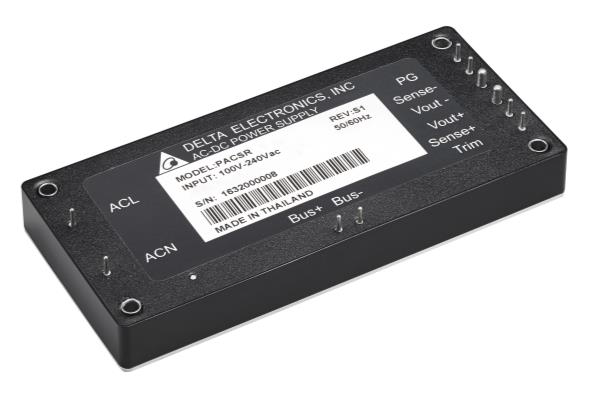

PACSR48010 |
85-265 |
48 |
280 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率94% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR48006 |
85-265 |
48 |
300 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率93.5% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR28010 |
85~265 |
28 |
300 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率93% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR12025 |
85~265 |
12 |
300 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率91.5% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR12042 |
85~265 |
12 |
500 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率91% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR24012 |
85~265 |
24 |
300 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率92.5% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR24021 |
85~265 |
24 |
500 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率93.5% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
 |
PACSR28018 |
85~265 |
28 |
500 |
110.8x50.8x13.7 |
-40℃
to
+100℃ |
满载效率93% @220VAC， 隔离电压3000VAC |
PCB
Mounting |
|
